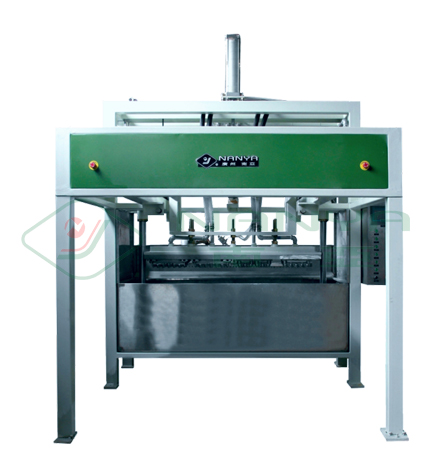

EC2400
Auxiliary device

碎浆机.png      空气压缩机.png     真空泵.png   烘干线.png

Introduction

The automatic reciprocating machine production line consists of pulp making system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system, which can produce many kinds of paper products. The production line takes waste paper such as waste newspaper, waste carton paper, trimmings and other waste paper as raw material, which is blended into a certain concentration of pulp through the process of hydrolysis and filtration, water injection, etc., and formed into wet products by vacuum adsorption on customized molds through the forming system, and finally stacked after drying and hot pressing in the dryer.

Advantage

①Automatic forming machine combined with dryer, no manual transit, high production efficiency.

②High flexibility of machine, can change molds to produce different products, one machine can produce more than two different products at the same time.

③Single or diversified paper products can be produced, and it can also produce egg tray and egg carton, fruit tray, coffee cup tray, medical tray, industrial product liner packaging and other products.

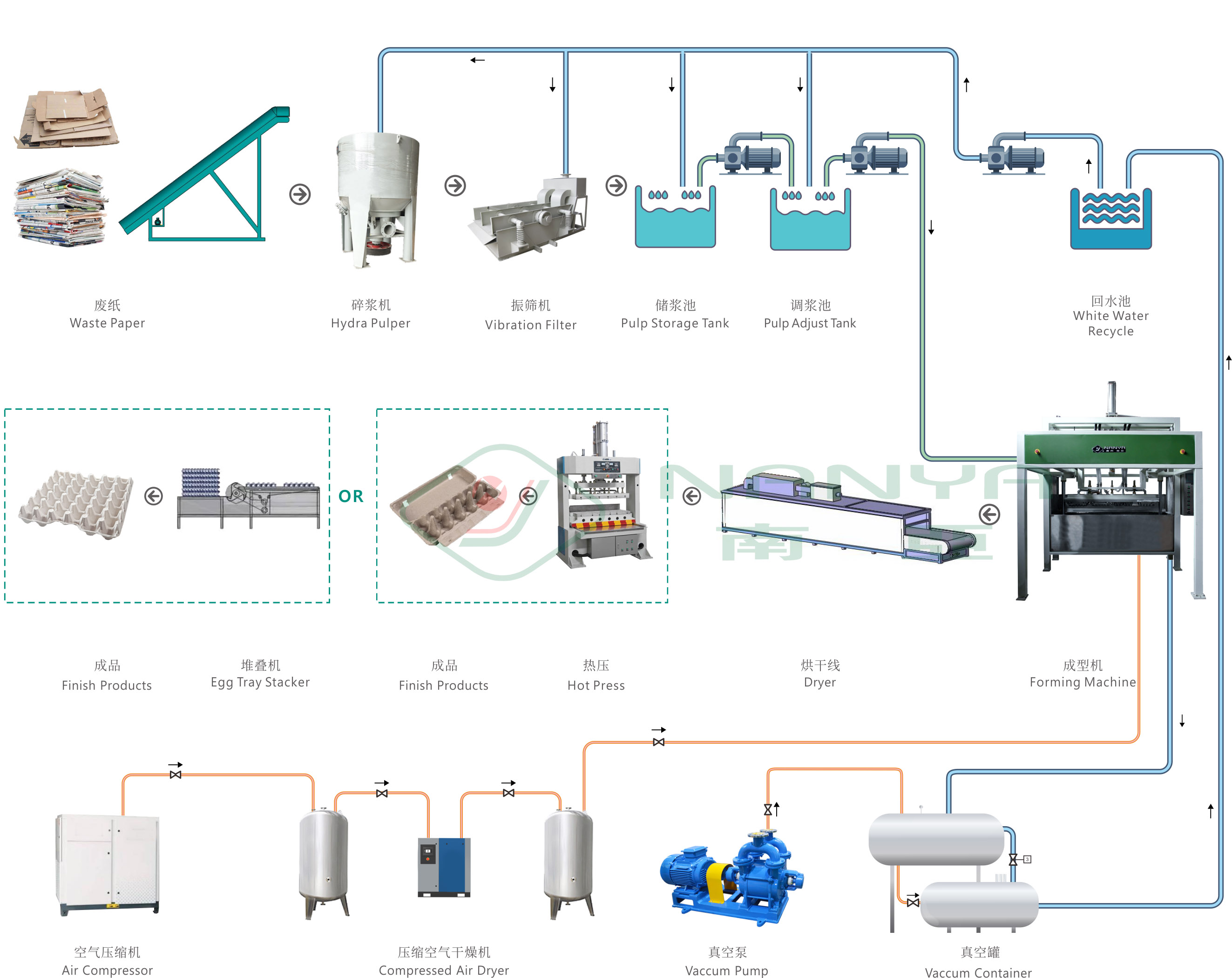

Process


Parameter




Pulp Molding Egg Tray / Fruit Tray / Cup Tray / Egg Carton Production Line Series - Automatic Reciprocating Machine Production Line

(Based on 30 egg trays, 65-70g dry weight)



EC2400 Production Line Data



Mold plate size



2000*800mm



Capacity



2000-2400 pcs/h



Forming method



Vacuum pulp suction



Dryer size



26*3*2.4m



Control



Touch screen+PLC



Material consumption



120-150kg /h


Energy consumption (Electricity/oil fuel)




95~105kw/h

40~50kg/h



Water consumption



600-800kg/h



Worker



3-4 workers/shift



Workshop size


500㎡



Installed power




140kw


Other Information




Place of origin



China



Brand



NANYA



Certification


 CE,TUV,SGS, ISO9001(optional)




Payment method



Cash, L/C,T/T,

Western Union




Packing Method



By export standard



Delivery time



60-120 days


Remark: The above data is for reference only and is subject to change as technology is updated.

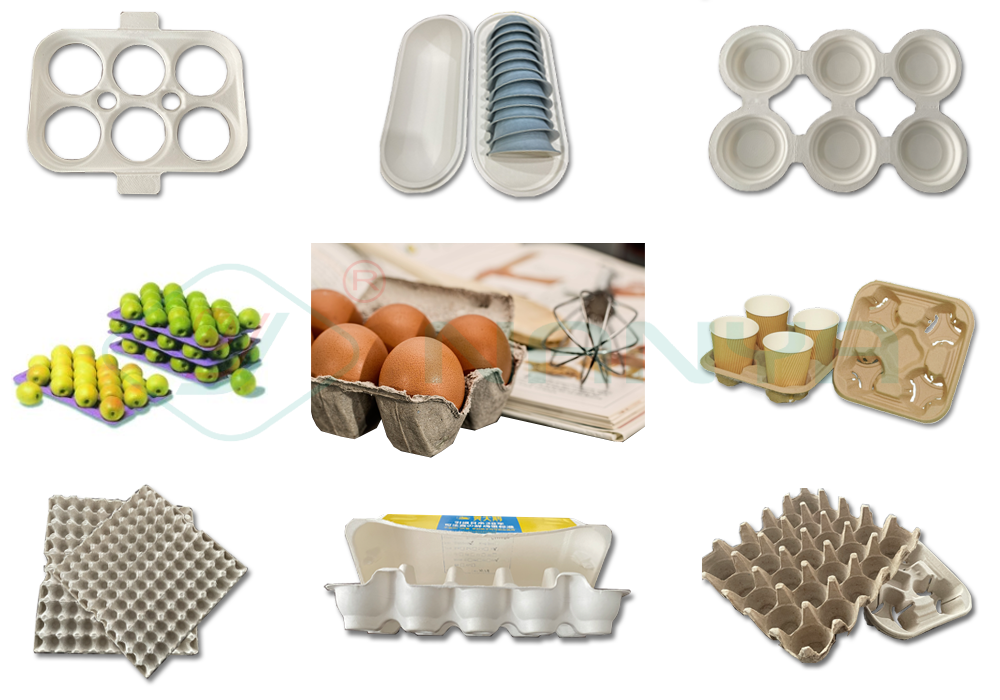

Paper product


Q&A

1. Are you a manufacturer or a trader?

A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.


2. What kind of molds can you produce?

A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.



3. What is the payment method?

A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.



4. What is your after-sales service?

A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.

②Provide operation manuals, drawings and process flow diagrams for all equipment.

③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.

④We can guide the buyer's engineer on production process and formula.
