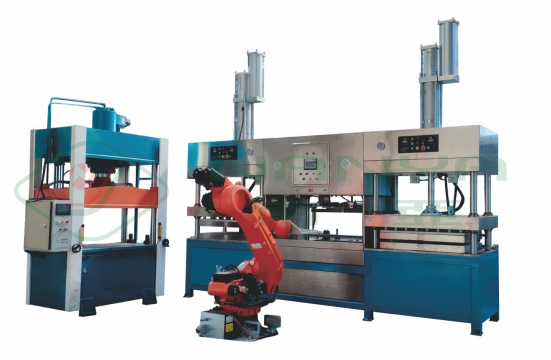

TF-05D
Auxiliary device


Introduction

BY series automatic tableware production line is composed of pulping system, forming system, vacuum system, high pressure water system and air pressure system, using sugar cane pulp, bamboo pulp, wood pulp, reed pulp, straw pulp and other pulp boards as raw materials to produce disposable paper tableware. The raw materials are blended into a certain concentration of pulp through the process of crushing, grinding and adding chemical additives, and then the pulp is evenly adhered to the customized metal mold through vacuum to form wet products, and then the disposable paper tableware products are produced through the process of drying, hot pressing, trimming and stacking.

Advantage

①Thin cost. Low investment in mold making; robotic transfer to reduce mold mesh loss; low labor demand.

②High degree of automation. The process of forming-drying in mold-trimming-stacking etc. realizes fully automatic operation.

③Good quality of finished products and more polished surface.

④Flexible production solutions. Can design different production solutions according to customer's capacity needs.

⑤A variety of main machine models are available.

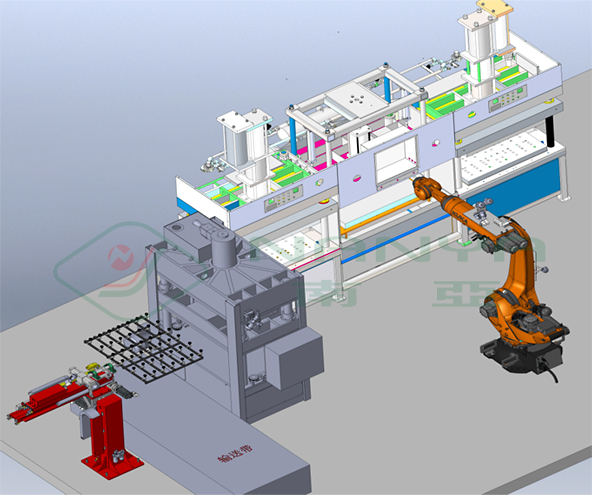

Process


Parameter




BY series automatic tableware production line



 TF-05D Production Line Data




 Model



BY043



Mold plate size



1100*800mm



Capacity



5 tons/day




Forming type


Vacuum pulp suction (reciprocating)




Drying method


Forming in mold(Optional electric heating or heat conduction oil heating)





Control method




PLC+touch screen


Material consumption



3.1-4.3 kg/day



Power consumption

(Electricity/Oil)



200-300kw/h

80-140m³/h



Water consumption



0.8-1.2m³/h



Worker



6 workers/shift



Workshop size



≥1500㎡



Installed power



400-1000KW


Other Information




Place of origin



China



Brand



NANYA



Certification



CE, UL, CSA (optional)



Payment method



Cash、L/C、T/T、

Western Union




Packing method



By export standard



Delivery time



45-150 days


Remark: The above data is for reference only and is subject to change as technology is updated.

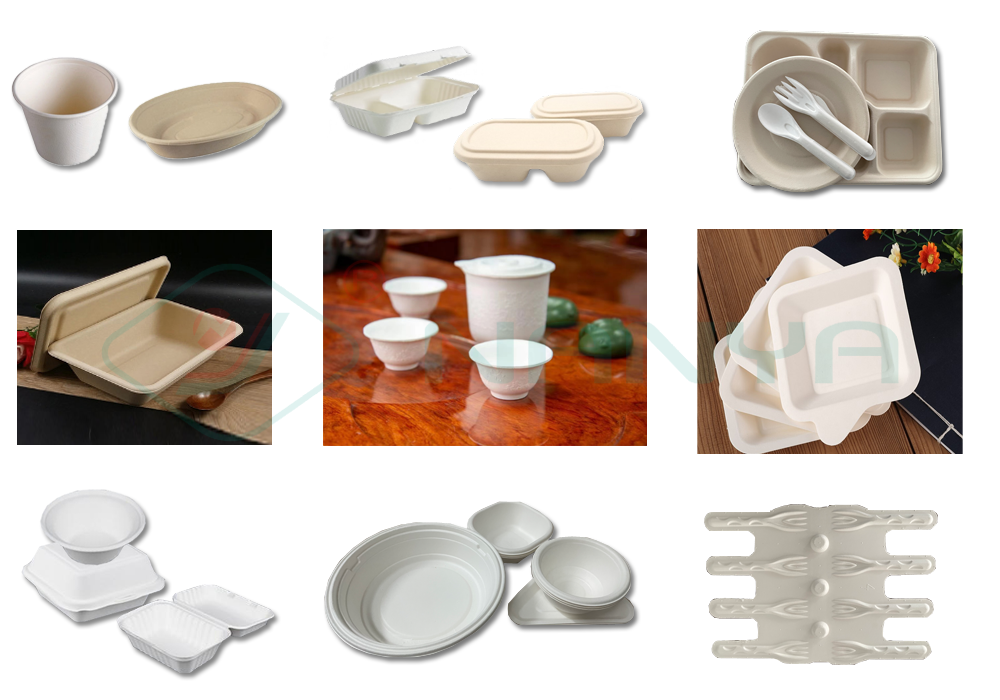

Paper product


Q&A

1. Are you a manufacturer or a trader?

A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.



2. What kind of molds can you produce?

A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.



3. What is the payment method?

A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.



4. What is your after-sales service?

A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.

②Provide operation manuals, drawings and process flow diagrams for all equipment.

③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.

④We can guide the buyer's engineer on production process and formula.
