P1280
Auxiliary device


Introduction

The automatic general industrial package production line is equipped with pulp making system, forming system, drying system, vacuum system, high pressure water system and air pressure system. Using waste newspapers and waste cartons as raw materials, it can support the production of various electronic product packaging, shockproof internal packaging for industrial parts, paper trays and other products.


Advantage

①High degree of automation. The wet product  is automatically fed into the dryer by the forming machine without manual transit, which has high production efficiency.

②High product qualification rate.

③Long equipment life and low failure rate. PLC + touch screen fully automatic control is adopted, easy to learn, operation and equipment maintenance are extremely simple.

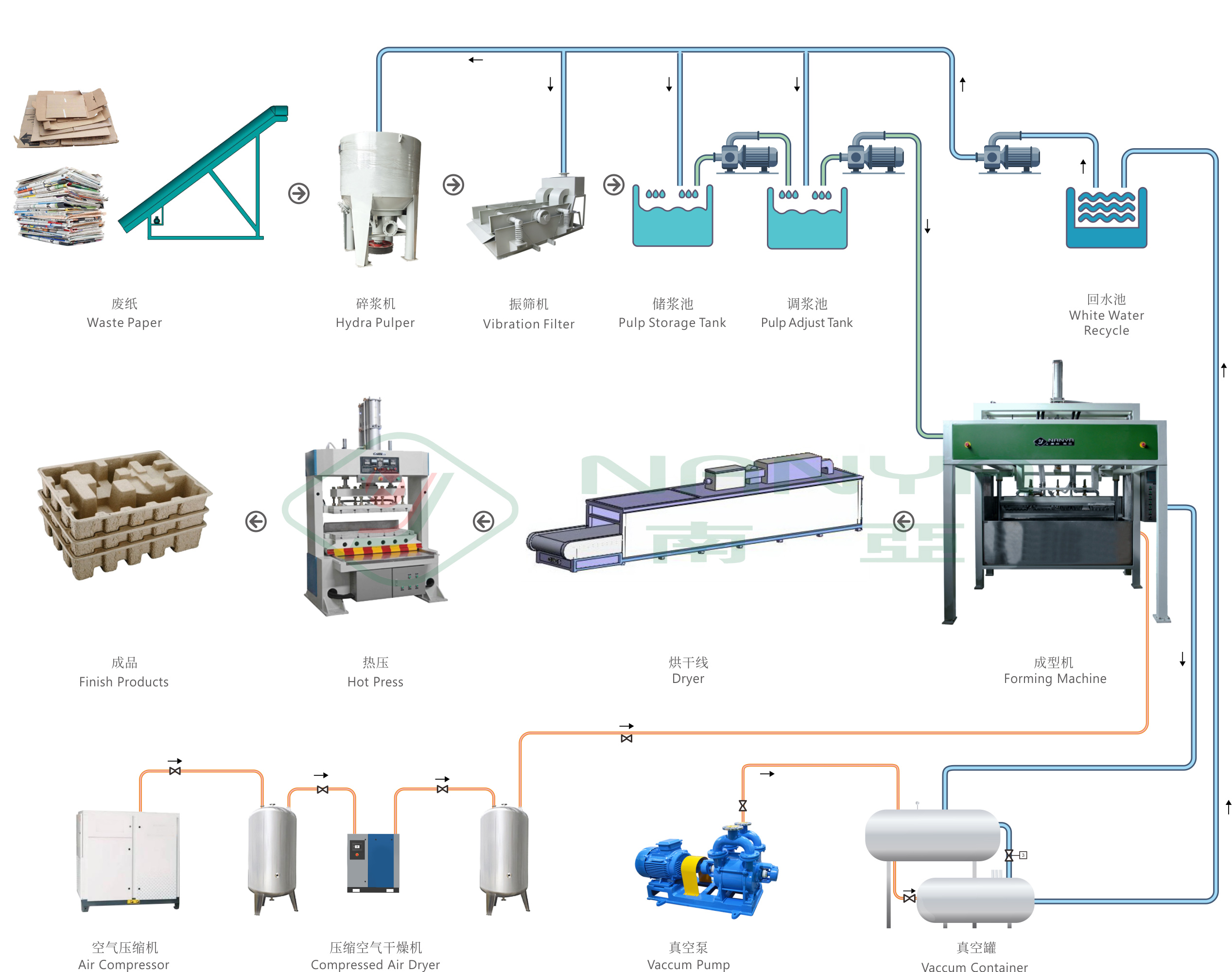

Process


Parameter

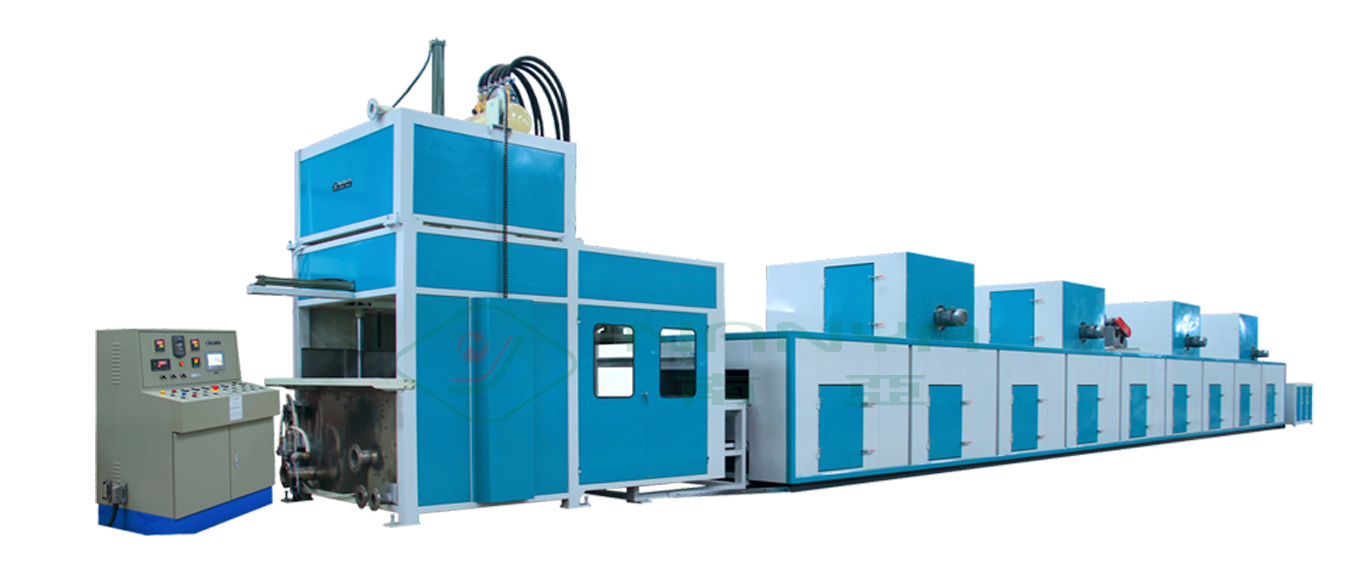

Dry press industrial packaging production line series - automatic package production line



P1280 Production Line Data




Model


CY060



Mold palte size


1000*660



Capacity



1-1.2 tons/day(24h)



Forming type


Reciprocating



Drying method


Dryer/Oast house/

Natural drying



Control method



PLC+touch screen



Material consumption



1-1.5 tons/day(24h)


Cylinder




125*650



Water consumption


0.2m³/h


Other Information




Place of origin




China



Brand



NANYA



Certification



CE,TUV,SGS, ISO9001(optional)



Payment method



Cash, L/C,T/T, Western Union




Packing method



By export standards



Delivery time



60-120 days


Remark: The above data is for reference only and subject to technical update.

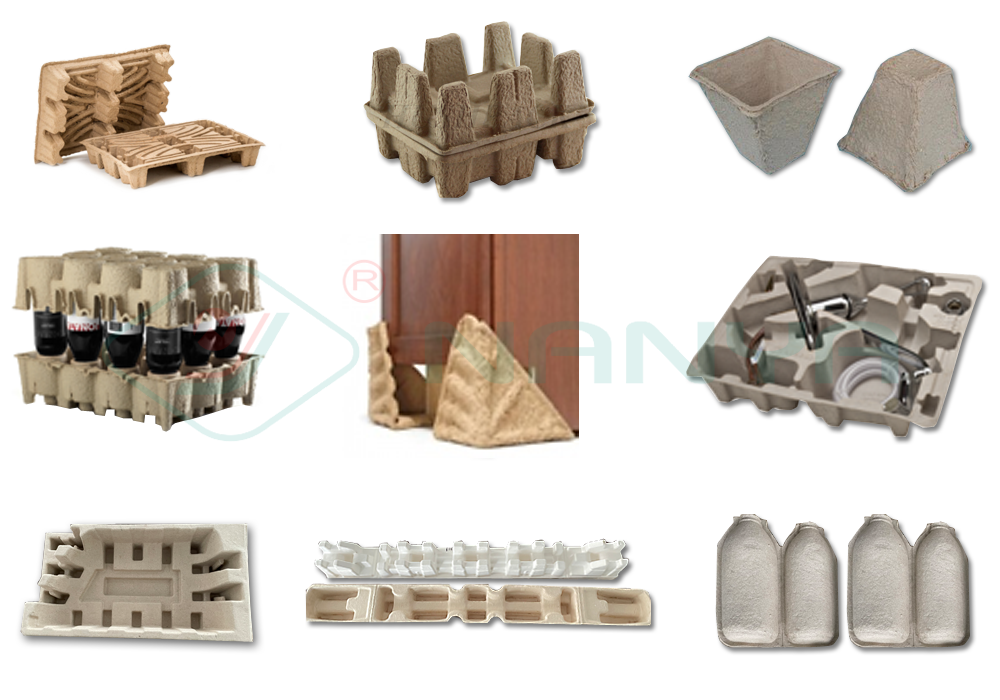

Paper product


Q&A

1. Are you a manufacturer or a trader?

A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.



2. What kind of molds can you produce?

A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.



3. What is the payment method?

A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.



4. What is your after-sales service?

A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.

②Provide operation manuals, drawings and process flow diagrams for all equipment.

③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.

④We can guide the buyer's engineer on production process and formula.
