TA-01
Auxiliary device



Introduction

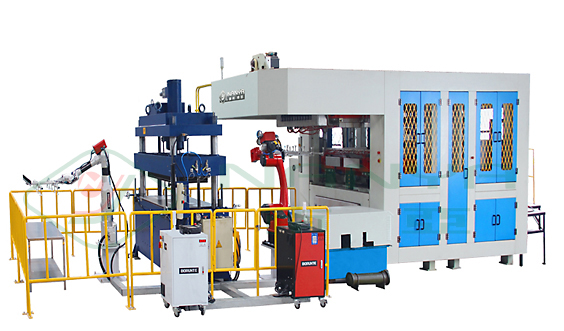

The main machine of this line is the independent intellectual property product of Nanya. The whole machine adopts full hydraulic numerical control for the left and right displacement, pulp absorption and product up and down mould closing parts. The three work stations are in a one-line structure, the middle is the pulp-absorbing and forming station, and the left and right are each drying and shaping stations, and the products are automatically sent out from the left and right after drying. The machine structure is compact and the production efficiency is high. All the movements of the machine are controlled by electrical control system, hydraulic control system and pneumatic control system, which completely realize automatic production.


Advantage

①Thin cost. Low labor demand and low labor intensity of workers.

②High degree of automation. The process of forming - drying in mold - edge cutting - stacking etc. is fully automated.

③Good quality of finished products. Can produce slightly deeper and smaller angle products.

④The production qualification rate is up to 95%~99%.

⑤Support the production of no-cutting products.


Process


Parameter




YC series automatic tableware production line



 TA-01 Production Line Data




Model



  YC040



Mold plate size



1300*1100mm

(The mold is grouped)




Capacity



0.7-1 ton/day




Forming type





            Vacuum pulping              (reciprocating)





Way of drying


Forming in mold(Optional electric heating or heat conduction oil heating)





Control method




PLC+touch screen


Material consumption



             0.7-1.1kg/day



Power consumption



160-200kw/h


Water consumption



0.1-0.2m³/h



Worker



2-3 workers/shift



Workshop size



≥300㎡



Installed power



250-350KW


Other Information




Place of origin



China



Brand



NANYA



Certification



CE, UL, CSA (optional)



Payment method



Cash、L/C、T/T、

Western Union




Packing method



By export standard



Delivery time



45-90 days


Remark: The above data is for reference only and is subject to change as technology is updated.

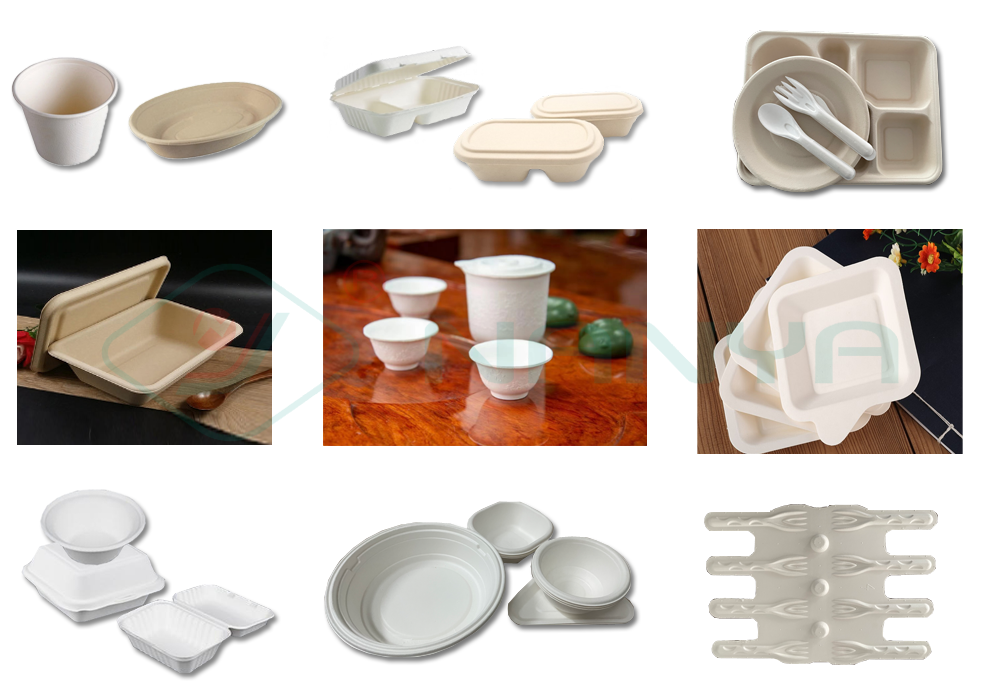

Paper product


Q&A

1. Are you a manufacturer or a trader?

A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.



2. What kind of molds can you produce?

A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.



3. What is the payment method?

A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.



4. What is your after-sales service?

A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.

②Provide operation manuals, drawings and process flow diagrams for all equipment.

③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.

④We can guide the buyer's engineer on production process and formula.
