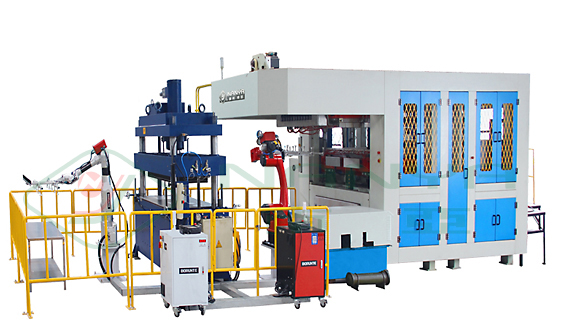

The main machine of this line is the independent intellectual property product of Nanya. The whole machine adopts full hydraulic numerical control for the left and right displacement, pulp absorption and product up and down mould closing parts. The three work stations are in a one-line structure, the middle is the pulp-absorbing and molding station, and the left and right are each drying and shaping stations, and the products are automatically sent out from the left and right after drying. The machine structure is compact and the production efficiency is high. All the movements of the machine are controlled by electrical control system, hydraulic control system and pneumatic control system, which completely realize automatic production.
①Thin cost. Low labor demand and low labor intensity of workers.
②High degree of automation. The process of forming - drying in mold - edge cutting - stacking etc. is fully automated.
③Good quality of finished products. Can produce slightly deeper and smaller angle products.
④The production qualification rate is up to 95%~99%.
⑤Support the production of no-cutting products.
YC series automatic tableware production line | |||||
TA-05 Production Line Data | |||||
Model |
YC040 |
Mold plate size |
1300*1100mm |
Capacity |
3-5 tons/day |
Forming type | Vacuum pulp suction (reciprocating) |
Drying method | Forming in mold(Optional electric heating or heat conduction oil heating) |
Control method |
PLC＋touch screen |
Material consumption |
3.1-5.2 ton/day |
Power consumption (electricity/oil) |
300-400kw/h 60-80m³/h |
Water consumption |
0.5-0.7m³/h |
Worker |
5-6 workers/shift |
Workshop size |
≥1000㎡ |
Installed power | Heat conduction oil heating 550-650KW; Or electric heating 1250-1350kw |
Other Information | |||||
Place of origin |
China |
Brand |
NANYA |
Certification |
CE, UL, CSA (optional) |
Payment method |
Cash、L/C、T/T、 Western Union |
Packing method |
By export standard |
Delivery time |
45-150 days |
Remark: The above data is for reference only and is subject to change as technology is updated. | |||||
1. Are you a manufacturer or a trader?
A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.
2. What kind of molds can you produce?
A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.
3. What is the payment method?
A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.
4. What is your after-sales service?
A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
②Provide operation manuals, drawings and process flow diagrams for all equipment.
③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.
④We can guide the buyer's engineer on production process and formula.
